EV Charger Car IEC 62196 Type 2 standard

Get A Quote Download as PDF

Details

Product Tags

Product Introduction

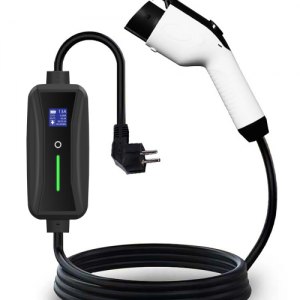

The Level 2 Electric Vehicle Car Charger is a compact and perfect solution for low-cost charging in your home or office. Simply plug the charger into your vehicle charging port and it will instantly start charging your electric vehicle. The charger features a LED control box to show the charge status. The cable is long to allow charging at a longer distance. Charger comes with storage / carrying case so it can be taken with you or stored in your vehicle’s trunk.

Product Features

BETTER MATERIALS - Bigger OLED screen offers a clearer display. The type 2 gun head is made of thermoplastic engineering nylon, effectively reducing the risk of fire. The robust controller box can stand a 10-meter height drop and 2-ton vehicle rolling pressure. The TPU-made wire is more flexible and durable, and very easy to coil up.

SECURE & RELIABLE - Certified by CE, TÜV and UKCA. The upgraded smart chip will protect your car from over/under voltage, over temperature, over/under current, leakage, short circuit, surge, lightning, grounding damages, etc.

Specification

Rated Current	16A / 20A/ 24A / 32A ( adjustable current )
Rated Power	Max 7.2KW
Operation Voltage	AC 110V~250 V
Rate Frequency	50Hz/60Hz
Leakage Protection	Type A RCD +DC 6mA ( Optional )
Withstand Voltage	2000V
Contact Resistance	0.5mΩ Max
Terminal Temperature Rise	＜50K
Shell Material	ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life	No-Load Plug In / Pull Out ＞10000 Times
Operating Temperature	-25°C ~ +55°C
Storage Temperature	-40°C ~ +80°C
Protection Degree	IP67
EV Control Box Size	200mm (L) X 93mm (W) X 51.5mm (H)
Weight	2.8KG
OLED Display	Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard	IEC 62752 , IEC 61851
Certification	TUV,CE Approved
