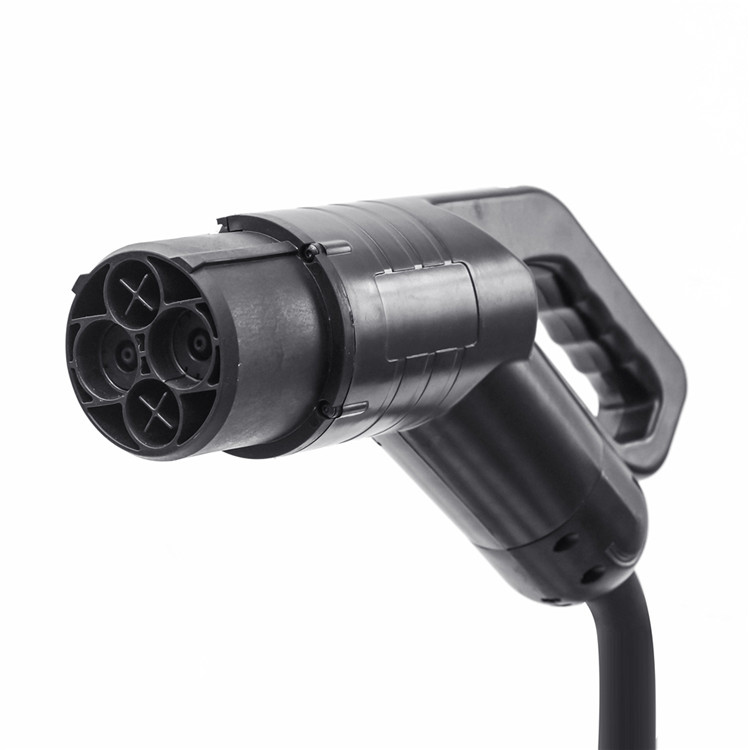

CHAdeMO EV Charger DC 125A Plug
Product Features
● Reliable DC quick charging from a DC power source.
● ROHS certified.
● JEVSG 105 comliant.
● CE mark and (European version).
● Built in safety actuatorprevent spowered disengageent.
● Weather proofing to IP54.
● Charging indicator LED.
● Leverassisted insertion.
● Mates with available DC charge coupler inlet.
● Rated Mating Cycles: 10000.
● Maximum Rated Voltage: 1000VDC.

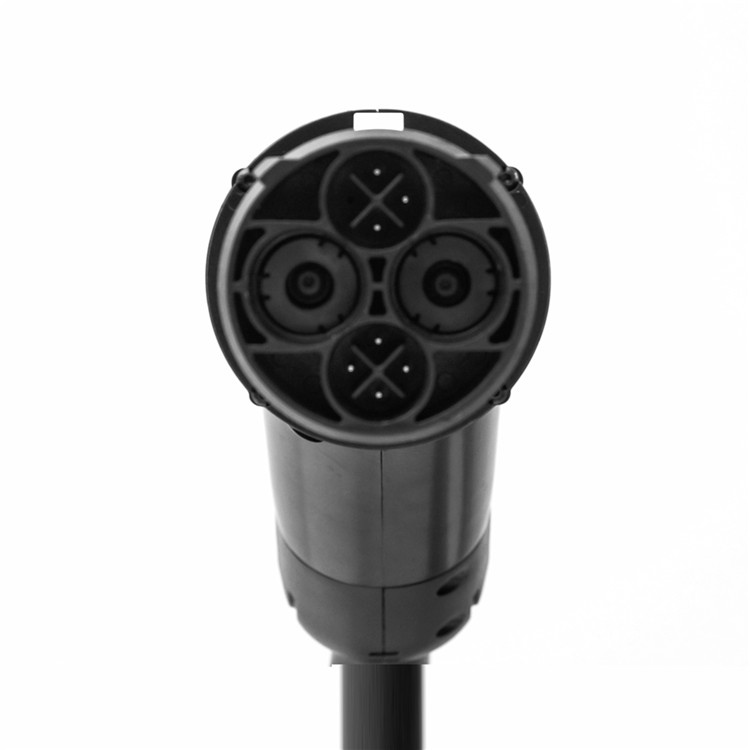

| Pin# | Function |
| 1 | Reference GND for insulation monitor |
| 2 | Control EV replay (1 of 2) |
| 3 | (not assigned) |
| 4 | Ready to charger control |
| 5 | Power(supply)line – negative |
| 6 | Power(supply)line – positive |
| 7 | Proximity detectiveon |
| 8 | Communication + |
| 9 | Communication - |
| 10 | Control EV replay(2 of 2) |
