CCS 2 EV Fast Plug Combo Charging DC 80A 125A 160A 200A For EV Station
Product Introduction
This CCS Combo 2 charging connector meets the European standards, can be used on the DC charging station to charge the electric vehicles with CCS Combo 2 Sockets..

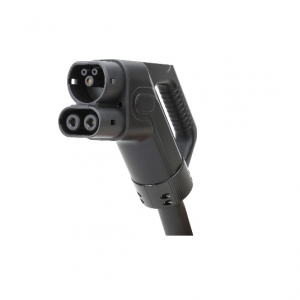

CCS Combo 2 Connector for Quick Charging Point
Product Features
1. Rated Current：400A
2. OperationVoltage：DC 1000V
3. Insulation Resistance：＞1000MΩ（DC500V）
4. DC Max Charging Power: 127.5KW
5. Withstand Voltage：3200V
Specification
| Features | 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP55 | |
| 4.Max charging power:127.5kW | |
| 5. AC Max charging power:41.5kW | |
| Mechanical Properties | 1. Mechanical life : no-load plug in/pull out＞10000 times |
| 2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 80A ,125A ,150A ,200A 1000V DC MAX |
| 2. AC input: 16A 32A 63A 240/415V AC MAX | |
| 3. Insulation resistance：＞2000MΩ（DC1000V） | |
| 4. Terminal temperature rise：＜50K | |
| 5. Withstand Voltage：3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 |
| 2. Pin：Copper alloy,silver +thermoplastic on the top | |
| Environmental Performance | 1. Operating temperature: -30°C~+50°C |
