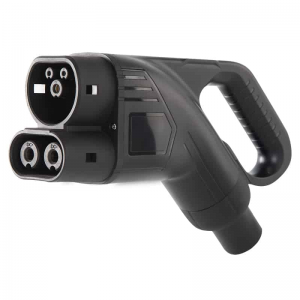

150A 200A CCS Combo 1 plug Fast Charge connector
Product Introduction
The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 2 connectors to provide power at up to 350 kilowatts, with two additional direct current (DC) contacts to allow high-power DC fast charging. Combo 1 chargers are primarily found in North and Central America, Korea and Taiwan. Shell colors are black, white, or customized.
Product Features
1. Rated Current：80A / 125A/150A/200A
2. OperationVoltage：DC 1000V
3. Insulation Resistance：＞1000MΩ（DC500V）
4. DC Max Charging Power: 127.5KW
5.AC Max Charging Power: 41.5KW
6. Withstand Voltage：3200V
Specification
| Features | 1. Meet 62196-3 IEC 2014 SHEET 3-IIIB standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP65 | |
| 4. DC Max charging power: 90kW | |
| 5. AC Max charging power:41.5kW | |
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times |
| 2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 80A, 150A , 200A1000V DC MAX |
| 2. AC input: 63A 240/415V AC MAX | |
| 3. Insulation resistance：＞2000MΩ（DC1000V） | |
| 4. Terminal temperature rise：＜50K | |
| 5. Withstand Voltage：3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 |
| 2. Pin：Copper alloy,silver + thermoplastic on the top | |
| Environmental performance | 1. Operating temperature: -30°C~+50°C |
