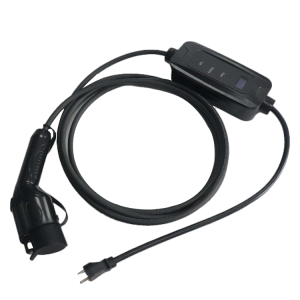

Type1 Portable EV Charger 3.5KW 7KW 11KW Power Optional Adjustable Rapid Electric Car Charger
Product Introduction
Fast Charging Level 1 & Level 2 EV Charger with adjustable 8/10/13/16/20/24/32amp. Supports charging for all Tesla & SAE J1772 EVs models. NEMA 14-50 plug: charge Level 2 vehicle, up to 32Amp 240V, 7 KW Max., 8x faster than a normal 8A level 1 charger. NEMA 5-20 Adaptor: charge Level 1 vehicle, up to 16Amp 110V, 1.7 KW Max., Ideal for older and newer model electric cars.
Product Features
【Portable EV Charging Box】As long as there is a NEMA 6-20 ( Comes with a NEMA5-15 to NEMA6-20 adapter) socket in the wall, this charging box would allow you to charge your electric vehicle wherever you want. It can stay in the trunk of your car after finish charging.
【Wide voltage for you】The EV charger offers 10/16A two current charging mode. Support a wide range of voltage 100-250V, Can be used in any situation and when using max power (3.68kw), Electric cars can be fully charged in 3-8 hours
【High Compatibility】Fit all EVs with SAE J1772 inlet, please check carefully.You can buy a NEMA 5-15 to NEMA 6-20 adapter for better use on the home 110V circuit
【Quick & Easy Operation】 Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and start charging, the parameters cannot be set in the charging state, please set before charging
Specification
Rated Current | 6A / 8A / 10A/ 13A ( Optional ) |
Rated Power | Max 3.6KW |
Operation Voltage | AC 110V~250 V |
Rate Frequency | 50Hz/60Hz |
Leakage Protection | Type B RCD ( Optional ) |
Withstand Voltage | 2000V |
Contact Resistance | 0.5mΩ Max |
Terminal Temperature Rise | <50K |
Shell Material | PC Flame Retardant Grade UL94 V-0 |
Mechanical Life | No-Load Plug In / Pull Out >10000 Times |
Operating Temperature | -25°C ~ +55°C |
Storage Temperature | -40°C ~ +80°C |
Protection Degree | IP67 |
EV Control Box Size | 200mm (L) X 93mm (W) X 51.5mm (H) |
Weight | 2.1KG |
OLED Display | Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time |
Standard | IEC 62752 , IEC 61851 |
Certification | TUV,CE Approved |
Protection | 1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover) 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection |
