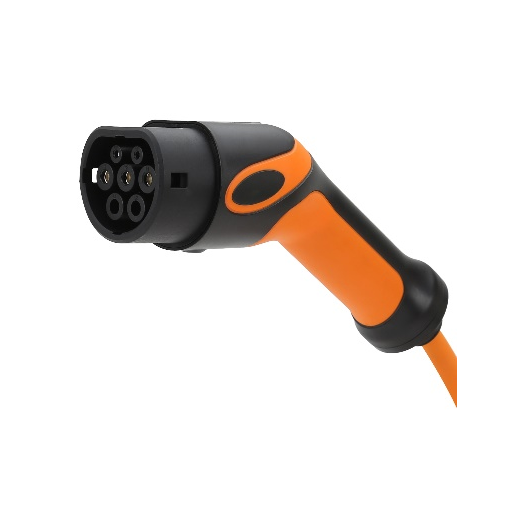

32A IEC 62196-2 Type 2 AC EV Charging Connector

Electrical Performance

lRated current:16A/32A/40A;

Operating voltage: 110/250/480V AC;

Insulation resistance:>500MΩ(DC500V);

Terminal temperature rise:<50K;

Withstand voltage:2000V;

Contact impedance: 0.5mΩ Max;

Vibration resistance: Meet JDQ53.36.1.1-53.36.1.2 requirements.

Get A Quote Download as PDF

Details

Product Tags

Product Introduction

The charging speed depends on three components - the charging station, which is the source of power, the charging cable and the on-board charger. You should select right EV charging connector to fit this system. The IEC 62196 Type 2 connector (commonly referred to as MENNEKES) is used in EV Charger within Europe. The Type 2 Connector Plug is connected by a cable to the AC EV Charger and the Plug has to be connected to the Type 2 Socket at the electric vehicle. The connector is circular in shape, with a flattened top edge; the original design specification carried an output electric power of 3–50 kW for charging battery electric vehicles using single-phase (230V) or three-phase (400V) alternating current (AC), with a typical maximum of 32 A 7.2 kW using single-phase AC and 22 kW with three-phase AC in common practice. This plug is designed for use in EV charging cables and will mate with any 62196-2 specified socket. Shell colors are black, white, or customized.

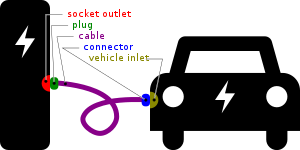

Regional variations in IEC 62196-2 Type 2 AC implementation

Region / Standard	Socket outlet	Connecting cable		Vehicle inlet	Electrical
		Plug	Connector		Phase (φ)	Current	Voltage
EU / IEC 62196-2 Type 2	Female	Male	Female	Male	1φ	70A	480V
					3φ	63A
US / SAE J3068 AC6	Permanently connected		Female	Male	3φ	100, 120, 160A	208/480/600V
China / GB/T 20234.2	Female	Male	Male	Female	1φ (3φ reserved)	16, 32A	250/400V

Product Features

For use with any IEC 62196-2 compatible electric vehicle;
Nice shape, hand-held ergonomic design, easy to use;
Protection class: IP67(in mated conditions);
Reliability of materials, environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV.

Mechanical Properties

Mechanical life: no-load socket in/pull out >10000 times
Insertion and coupled Force: 45N<F<80N;
Operating temperature: -30°C ~ +50°C

Materials

Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
Contact Pin: Copper alloy, silver or nickel plating;
Sealing gasket: rubber or silicon rubber.
