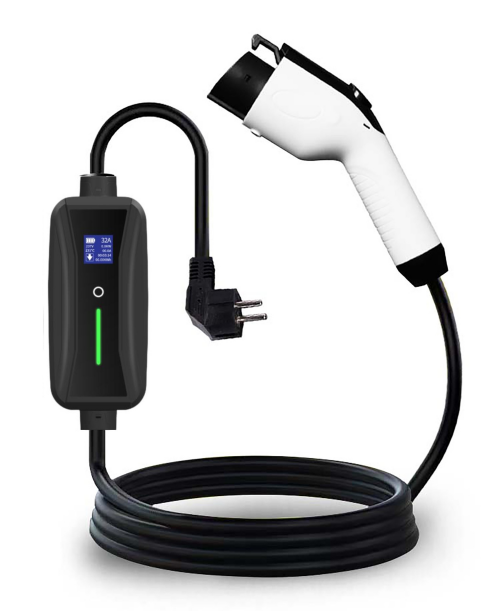

32A Electric Vehicle Level 2 Mode2 Cable EV Portable Charger with Type 1 plug and NEMA 14-50

Introducing the latest innovation in electric vehicle charging technology – the 32A Electric Vehicle Level 2 Mode2 Cable EV Portable Charger. This versatile charger is equipped with a Type 1 plug and NEMA 14-50, making it compatible with all Tesla and SAE J1772 EV models.

With adjustable amperage settings ranging from 8 to 32 amps, this charger offers the flexibility to meet the charging needs of a wide range of electric vehicles. The NEMA 14-50 plug allows for Level 2 charging at up to 32 amps and 240 volts, delivering a rapid 7 KW charging power that is up to 8 times faster than a standard 8A Level 1 charger. This makes it an ideal choice for quick and efficient charging at home or on the go.

In addition, the charger comes with a NEMA 5-20 adapter, enabling Level 1 charging at up to 16 amps and 110 volts, providing a maximum power output of 1.7 KW. This makes it suitable for both older and newer model electric cars, offering a convenient and reliable charging solution for a diverse range of vehicles.

The 32A Electric Vehicle Level 2 Mode2 Cable EV Portable Charger is designed to be portable and easy to use, ensuring that you can charge your electric vehicle wherever and whenever you need to. Its compact and durable design makes it a perfect companion for road trips, travel, or everyday use.

Say goodbye to long charging times and hello to fast, efficient charging with the 32A Electric Vehicle Level 2 Mode2 Cable EV Portable Charger. Whether you are at home, at work, or on the road, this versatile charger is ready to meet your electric vehicle charging needs with ease and convenience.

Get A Quote Download as PDF

Details

Product Tags

Product Introduction

Fast Charging Level 1 & Level 2 EV Charger with adjustable 8/10/13/16/20/24/32amp. Supports charging for all Tesla & SAE J1772 EVs models. NEMA 14-50 plug: charge Level 2 vehicle, up to 32Amp 240V, 7 KW Max., 8x faster than a normal 8A level 1 charger. NEMA 5-20 Adaptor: charge Level 1 vehicle, up to 16Amp 110V, 1.7 KW Max., Ideal for older and newer model electric cars.

Product Features

【Auto Safer & Reliable】Nobi Electric Car Charger cables are Thicker than other brands, built with safety & durability in mind to support more current flow, for high efficiency power transfer, better temperature control with less heat to achieve a longer lifetime use in all conditions.

【Lighter & Full Mobility EV Charger to Go】Nobi Portable EV Charger compact size with a carrying case for easy storage in the vehicle’s trunk. Convenient to carry anywhere you want to charge your EV. Especially working on level 1 either, providing the most flexibility & convenience for your road travel.

【Performance in Extreme Weather】Outside NEMA enclosures of Voltre Level 1 & Level 2 charger protect all the electric components from the surrounding environment. NEMA IP65 enables you can charge against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed water. With 25 ft cable to charge your EVs at a longer distance for driveway/garage use. Maximum continuous charging power for electric vehicles at home and on the road. (-22 °F ~122 °F)

【Easy Plug-&-Charge Tech without any APP】 Very simple to set up and charge. Plug the SAE J1772 connector of Electric Vehicle Charger into your car (need a J1772 to Tesla charging adapter (not included) if your vehicle is Tesla), and set up current (8-32A) and delay charging (1-8 Hours) by the LED Screen (Caution: NEMA 5-15 adapters: Level 1 Charger, 16A Max.), the screen with temperature display and LED indicators allow you a quick glance of the charging status.

Specification

Rated Current	16A / 20A/ 24A / 32A ( adjustable current )
Rated Power	Max 7.2KW
Operation Voltage	AC 110V~250 V
Rate Frequency	50Hz/60Hz
Leakage Protection	Type A RCD +DC 6mA ( Optional )
Withstand Voltage	2000V
Contact Resistance	0.5mΩ Max
Terminal Temperature Rise	＜50K
Shell Material	ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life	No-Load Plug In / Pull Out ＞10000 Times
Operating Temperature	-25°C ~ +55°C
Storage Temperature	-40°C ~ +80°C
Protection Degree	IP67
EV Control Box Size	200mm (L) X 93mm (W) X 51.5mm (H)
Weight	2.8KG
OLED Display	Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard	IEC 62752 , IEC 61851
Certification	TUV,CE Approved
Protection	Over and under frequency protection Over Current Protection Leakage Current Protection (restart recover） Over Temperature Protection Overload protection (self-checking recover) Ground Protection and Short circuit protection Over voltage and under-voltage protection 8. Lighting Protection
