200a ccs combo 1 ev dc fast charging socket inlet for station
Product Introduction
The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 1 (CCS1) or Combo 2 (CCS2) connectors to provide power at up to 350 kilowatts (kW) (max 500 amps), although higher values are coming. These two connectors are extensions of the IEC 62196 Type 1 and Type 2 connectors, with two additional direct current (DC) contacts to allow high-power DC fast charging.
The Combined Charging System allows AC charging using the Type 1 and Type 2 connector depending on the geographical region. This charging environment encompasses charging couplers, charging communication, charging stations, the electric vehicle and various functions for the charging process such as load balancing and charge authorization.
Product Features
1. Rated Current：80A/125A/150A/200A
2. OperationVoltage：DC 1000V
3. Insulation Resistance：＞1000MΩ（DC500V）
4. DC Max Charging Power: 90KW
5.AC Max Charging Power: 41.5KW
6. Withstand Voltage：3200V
Specification
| Features | 1. Meet 62196-3 IEC 2014 SHEET 3-IIIB standard |

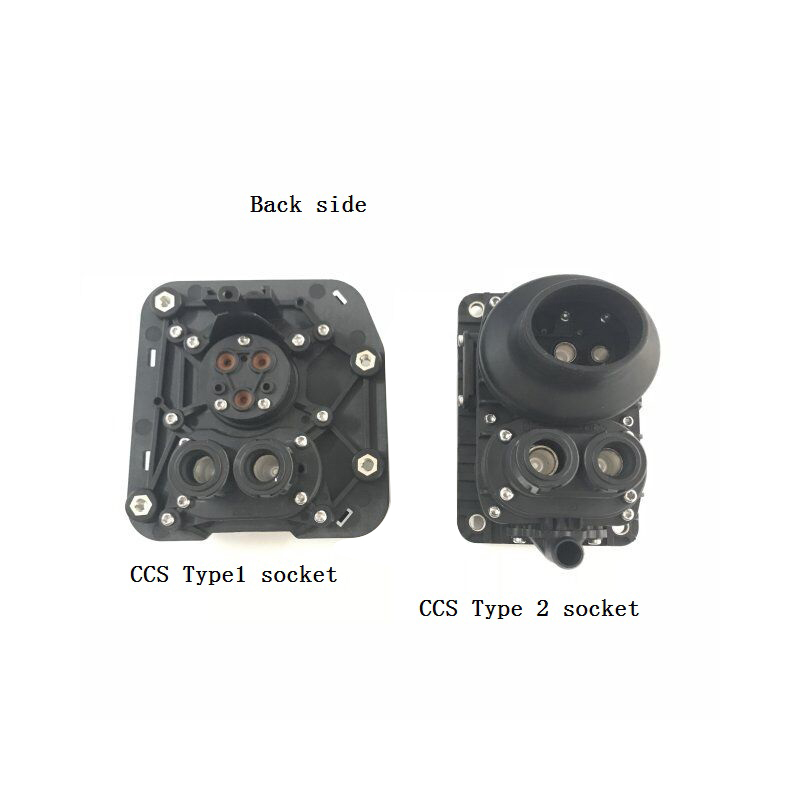

| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP65 | |
| 4. DC Max charging power: 90kW | |
| 5. AC Max charging power:41.5kW | |
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times |
| 2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 150A 1000V DC MAX |
| 2. AC input: 63A 240/415V AC MAX | |
| 3. Insulation resistance：＞2000MΩ（DC1000V） | |
| 4. Terminal temperature rise：＜50K | |
| 5. Withstand Voltage：3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 |
| 2. Pin：Copper alloy,silver + thermoplastic on the top | |
| Environmental performance | 1. Operating temperature: -30°C~+50°C |
