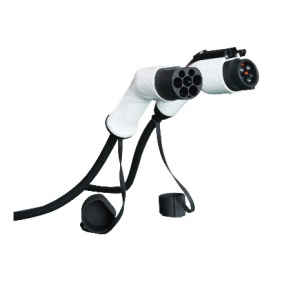

16A 32A Type 1 to Type 2 EV Charging Cable EVSE Electric Car Charger
Product Introduction
Our extension cables easily allow you to extend the length of your Type 1 tethered units or normal cables, giving you the extra length you need for awkward driveway. They are made from the same great parts and materials as our charging cables.
Product Features
[Fast Charging] This Type 1 to Type 2, 32A single phase ev charging cable allows up to 7.2kw charging power. The 5m ev cable is made of high-quality copper and provides good conductivity for faster charging. You can use it on any Type 2 (IEC 62196-2) socketed public or home charging point to charge your electric vehicle & plug-in hybrid vehicle.
[Compatible] The ev charger cable is CE, TUV certificated and complies with all Type 2 (IEC 62196-2, 7 pins) electric vehicles.
[High-quality Materials] The ergonomic design handle is made of thermoplastic engineering plastic and can stand 1 meter height drop & 2 ton vehicle rolling pressure. Equipped with the free handy carry bag, the durable ev and phev charging cable can be carried and stored conveniently.
[Safe & Reliable] This 32A ev car charging cable has an IP55 waterproof rating. Silver-plated surface of the power and signal contacts makes charging more safe and stable. The safty pins insulated head prevents accidental direct contact. It also supports vehicle and charging staition electronic lock.
[2-year Warranty] All of our products will be tested before entering the market and come with a 2 year no fuss warranty.
Specification
Rated Current | 16Amp / 32Amp |
Operation Voltage | AC 250V |
Insulation Resistance | >1000MΩ ( DC 500V ) |
Withstand Voltage | 2000V |
Pin Material | Copper Alloy, Silver Plating |
Shell Material | Thermoplastic,Flame Retardant Grade UL94 V-0 |
Mechanical Life | No-Load Plug In / Pull Out >10000 Times |
Contact Resistance | 0.5mΩ Max |
Terminal Temperature Rise | <50K |
Operating Temperature | -30°C~+50°C |
Impact Insertion Force | >300N |
Waterproof Degree | IP55 |
Cable Protection | Reliability of materials,antiflaming,pressure-resistant, abrasion resistance,impact resistance and high oil |
Plug Standard | Current | Phase | Power |
TYPE2-TYPE2 | 16A | 1-Phase | 3.6kW |
TYPE2-TYPE2 | 16A | 3-Phase | 11kW |
TYPE2-TYPE2 | 32A | 1-Phase | 7.2kW |
TYPE2-TYPE2 | 32A | 3-Phase | 22kW |
TYPE1-TYPE2 | 16A | 1-Phase | 3.6kW |
TYPE1-TYPE2 | 32A | 1-Phase | 7.2kW |
